Reliable Network Connection

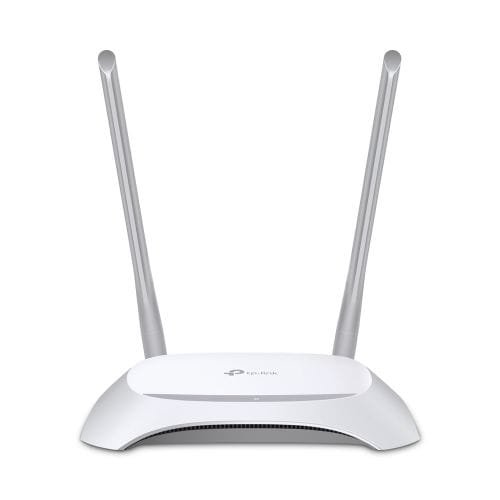

Equipped with two 5dBi antennas, TL-WR840N can enhance wireless signal transmission and reception. With the 4 fast Ethernet ports, it provides reliable Wi-Fi and wired connection for medium-sized homes, letting your family enjoy fast Wi-Fi together on every smartphone, tablet and laptop. Quick, Everyday Wi-Fi
TL-WR840N is compatible with IEEE802.11b/g/n and provides a high speed solution. Complying with the IEEE802.11n standard, TL-WR840N can deliver a speed up to 300Mbps, meeting your most demanding home networking needs, such as HD streaming, online gaming and large files downloading. Reliability · Wireless N Speed – 300Mbps Wi-Fi speed meets your daily internet needs
· 802.11n – Backward compatible with 802.11b/g products
· Easy Bandwidth Management – Bandwidth Control allocates necessary speed of each connected device to ensure quality of multimedia streaming
· Access Control – Establish a whitelist or blacklist to allow or block certain devices from accessing the internet Ease of Use · Intuitive Web UI– Ensures quick and simple installation without hassle
· Fast Encryption – One-touch wireless security encryption with the WPS button
· Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether App, available on any Android or iOS device
· Parental Controls – Manage when and how children devices can access the internet Multi-mode · Wireless Router Mode – Create a strong Wi-Fi network and share internet to multiple Wi-Fi devices
· Access Point Mode – Transform your existing wired network to a wireless one
· Range Extender Mode – Boost the existing wireless coverage in your home
· WISP Mode – Connect to the ISP network wirelessly in areas without wired service Hardware · Ethernet Ports: 4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port
· Buttons: WPS/Reset Button
· Antennas: 2 Fixed Omni Directional Antennas
· External Power Supply: 9VDC / 0.6A
· Dimensions (W x D x H): 7.2 x 5.0 x 1.4 in. (182 x 128 x 35mm) Wireless · Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
· Frequency: 2.412~2.472GHz
· Signal Rate:
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
· Reception Sensitivity:
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -87dBm@8% PER
6M: -90dBm@10% PER
1M: -98dBm@8% PER
· Wireless Function: Enable/Disable Wireless Radio, WMM, Wireless Statistics
· Wireless Security: WEP, WPA / WPA2, WPA-PSK / WPA2-PSK Software · Working Modes: Wireless Router, Range Extender, Access Point, WISP
· WAN Type: Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access), Bigpond
· DHCP: Server, DHCP Client List, Address Reservation
· Quality of Service: WMM, Bandwidth Control
· Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
· Dynamic DNS: DynDns, Comexe, NO-IP
· Access Control: Parental Controls, Local Management Control, Host list, Access Schedule, Rule Management
· Firewall Security: DoS, stateful packet inspection Firewall, IP and MAC Address Binding
· Protocols: IPv4, IPv6
· Management: Access Control, Local Management, Remote Management
· Guest Network: 2.4GHz Guest Network Others · Certification
CE, RoHS
· System Requirements
Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access) Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
